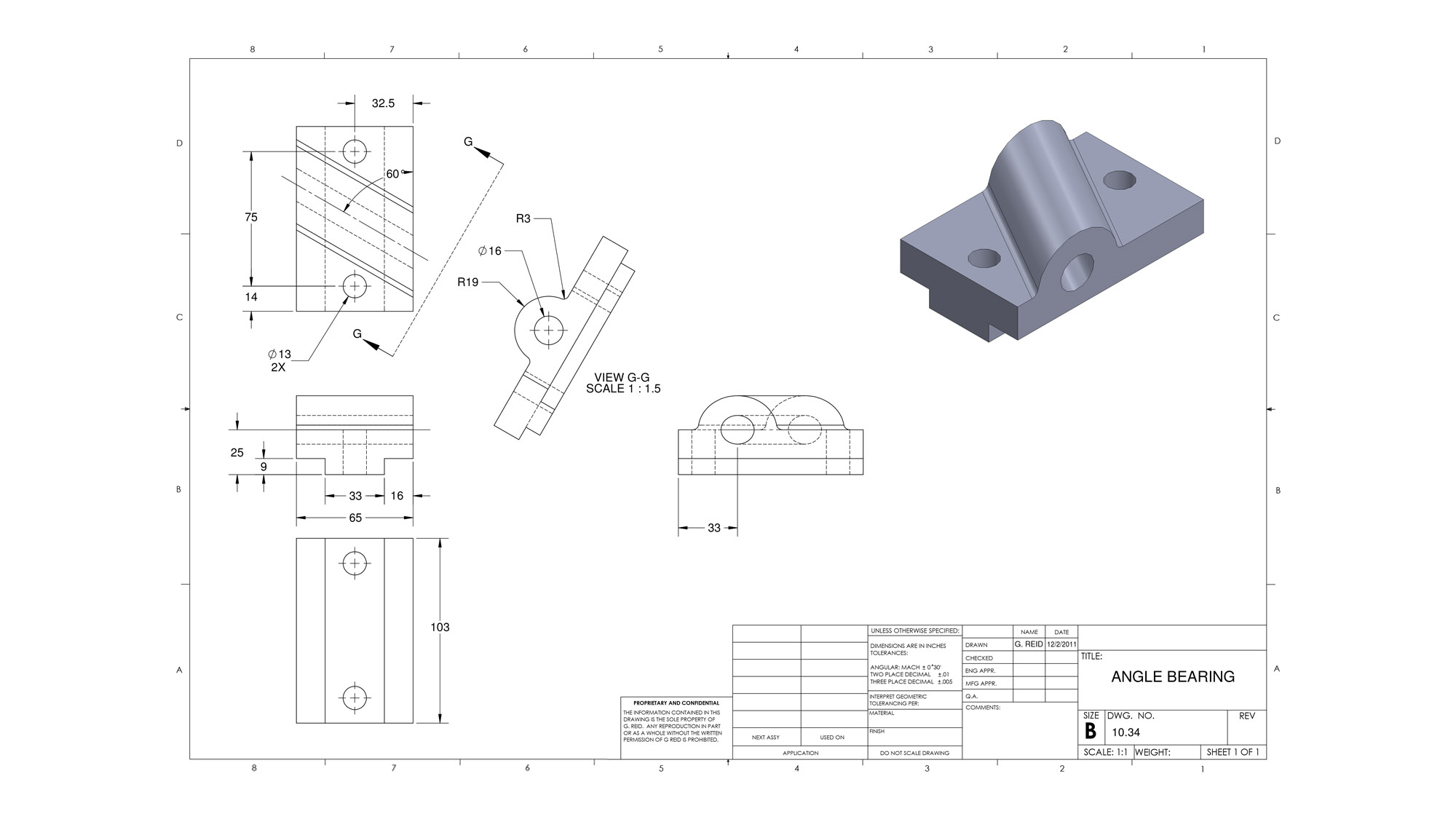

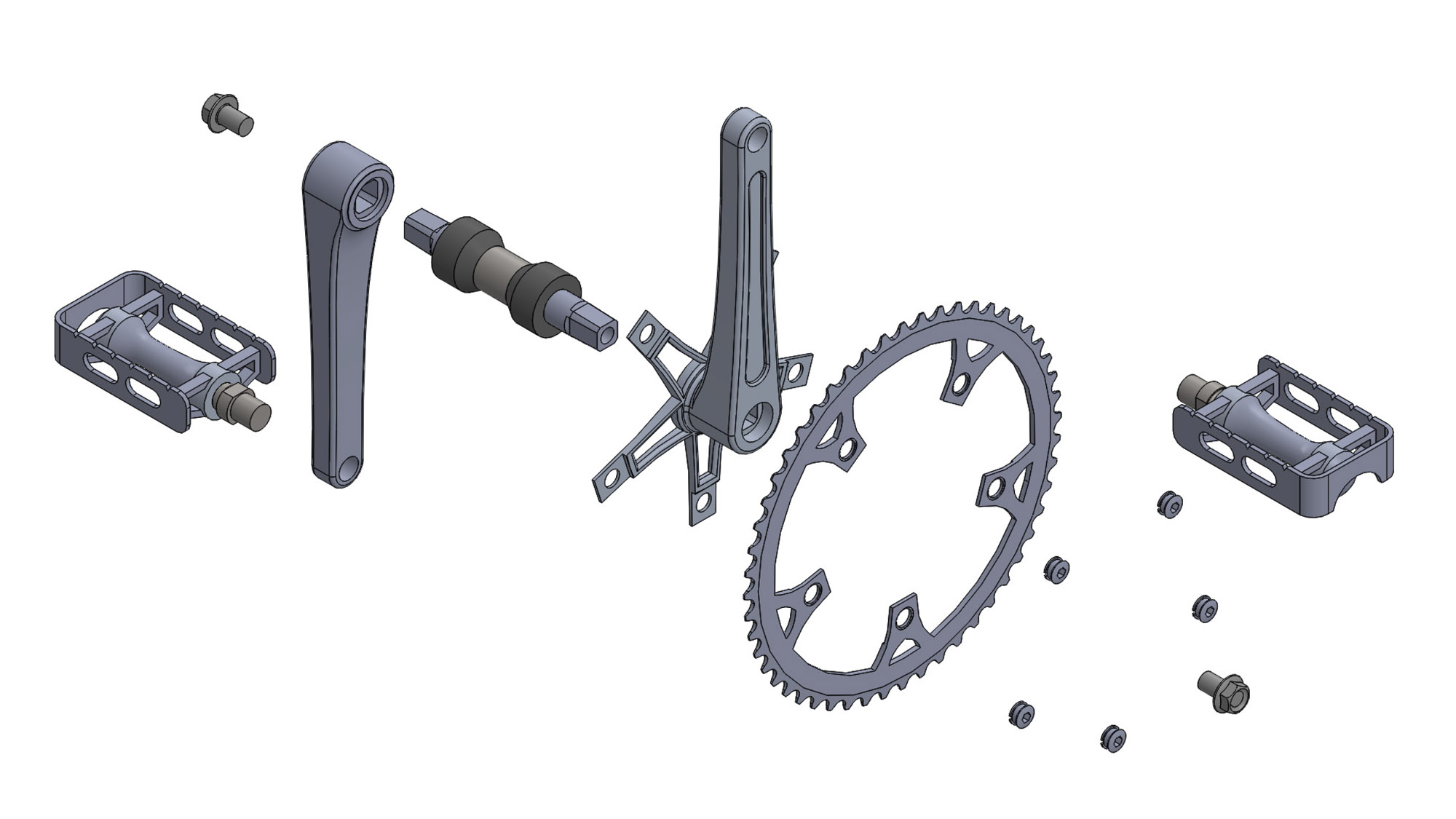

A bicycle crank assembly project created as the capstone for an introductory SolidWorks course. Deliverables included fully dimensioned parts, assemblies, and blueprints. Also featured are five detailed homework assignments, each modeled from textbook specs and finalized with complete 3D renderings and technical documentation.

Roles: 3D Modeling, Blueprint Production
Programs: SolidWorks 2011, Adobe Illustrator
